Fire Department Connections


415
1 1/2" FxM Angle Hose Valve

FEATURES
UL listed and FM approved.
Used with a fire hose rack assembly or as a fire department outlet connection.
MATERIALS
Body: Cast brass
Hand Wheel: Aluminum
APPLICATIONS
Fits: To select the proper replacement hand wheel, you must know the manufacturer of the valve. The manufacturer's name is stamped on the valve's body.
RATINGS
Pressure: 300 psi

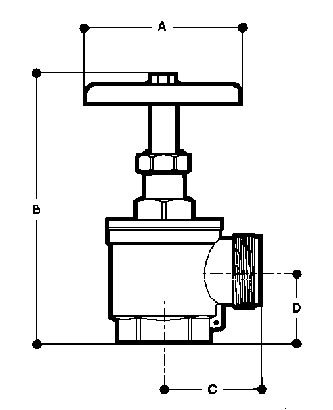

SIZE

A: 3 15/16 "
B: 7 11/16 "
C: 2 3/16 "
D: 1 7/8 "
Threads: Female: 1 1/2 " NPT
Male: 1 1/2 " NPSH
